Everything You Should Know About 14500 Lithium Batteries

The Complete Guide to 14500 Lithium Batteries

If you’ve ever used a flashlight or a portable device, you’ve likely encountered the small but mighty 14500 lithium battery. These compact powerhouses pack a significant punch, making them essential components in modern gadgets. What exactly are they, and why the popularity? Let’s delve into the world of 14500 lithium batteries and uncover the crucial details.

Part 1: Introduction to 14500 Lithium Batteries

The 14500 lithium-ion (Li-ion) battery is a small, cylindrical, rechargeable battery. Its name comes from its dimensions:

• 14mm in diameter
• 50mm in length

This size is very similar to a standard AA battery, but where the 14500 battery stands out is its nominal voltage of 3.7V, which is significantly higher than the 1.5V of a typical alkaline AA battery.

Structure and Principle

14500 batteries operate using lithium-ion technology:

• Anode: Typically made of graphite, and used for storing lithium ions during charging.
• Cathode: Commonly made from materials like Lithium Cobalt Oxide (LiCoO2) or Lithium Manganese Oxide (LiMn2O4).
• Electrolyte: Facilitates the movement of lithium ions between the anode and cathode.

During discharge, lithium ions move from the anode to the cathode, producing energy. During charging, this process is reversed.

Key Features of 14500 Batteries

• Rechargeable: A sustainable and cost-effective long-term power solution.
• High Energy Density: Offers a significant amount of power in a compact form.
• Lightweight: Ideal for portable devices.
• Voltage Stability: Ensures consistent power output, making it suitable for sensitive electronics.

Part 2: Understanding 14500 Li-ion Battery Specifications

Before purchasing a 14500 rechargeable battery, it’s important to understand the key specifications. Here’s a detailed breakdown of the critical parameters:

• Size: 14mm x 50mm, similar in size to a standard AA battery.
• Nominal Voltage: 3.7V (some models may offer 3.6V).
• Charging Voltage: Typically 4.2V.
• Cut-off Voltage: Usually between 2.5V and 3.0V. Discharging beyond this range can damage the battery.
• Discharge Voltage: The voltage typically stabilizes around 3.6V–3.7V during use.
• Chemistry: Popular chemical compositions include Lithium Cobalt Oxide (LCO), Lithium Manganese Oxide (LMO), and Lithium Iron Phosphate (LFP).
• Capacity: Ranges from 600mAh to 1200mAh.
• Cycle Life: Typically lasts for about 300–500 charge cycles, depending on usage and battery quality.
• Protection Circuit: Some models include protection circuits to prevent overcharging, deep discharging, and overheating.

Part 3: Battery Capacity

Battery capacity is measured in milliampere-hours (mAh), indicating the amount of energy the battery can store and deliver.

• 600mAh–800mAh: Best for low-power devices like small flashlights.
• 1000mAh–1200mAh: Ideal for high-drain devices such as cameras and power tools.

Impact of Capacity on Performance

Higher capacity means longer run times but also results in longer charging times. When selecting a battery, it’s important to consider the energy demands of your device and how frequently you plan to use it.

Part 4: 3.7V 14500 Li-ion Battery

The 3.7V 14500 Li-ion battery is highly regarded for its excellent performance. These batteries offer high energy density, meaning they store a significant amount of power in a small space. Additionally, they typically have a long cycle life, making them a reliable and durable power source for your devices.

3.7V 14500 Li-ion batteries are commonly used in:

• Flashlights: Their high voltage and capacity make them ideal for providing bright, long-lasting light.
• Cameras: Providing the necessary power for energy-intensive features such as flash and continuous shooting.
• Portable Electronics: Any high-drain device that requires a compact, reliable power source can benefit from these batteries.

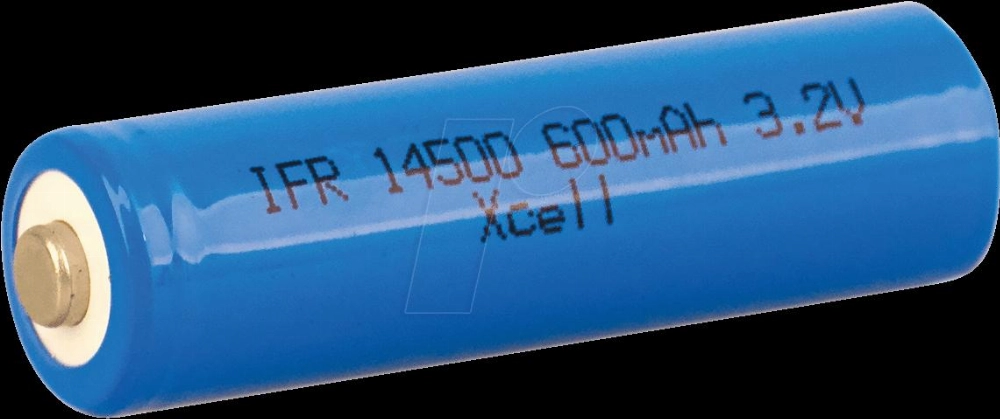

Part 5: 14500 LiFePO4 Battery

The 14500 Lithium Iron Phosphate (LiFePO4) battery is another model worth considering. Known for their superior stability and safety, LiFePO4 batteries are ideal for applications requiring durability and consistent performance. These batteries are often used in devices where high reliability and safety are critical, adding to the versatility of the 14500 battery family.

With their combination of high energy density, long-lasting performance, and safety features, 14500 lithium batteries are a vital component in today’s portable devices. Whether you’re using a flashlight, camera, or any high-drain gadget, choosing the right 14500 battery can enhance the reliability and performance of your device.

Choose wisely and experience the power and convenience that 14500 lithium batteries bring to your everyday technology.

For a deeper dive into battery technology, check out our LFP vs NMC Battery Technology Comparison to learn more about how different lithium battery technologies work.

Exceptional Safety and Stability of LiFePO4 Batteries

LiFePO4 batteries are known for their superior safety and stability. With a nominal voltage of 3.2V, slightly lower than lithium-ion batteries, their standout feature is their resistance to overheating and thermal runaway, making them a safer alternative compared to lithium-ion batteries, especially in high-temperature environments. Additionally, these batteries have a long lifespan, often outlasting lithium-ion batteries.

These batteries are well-suited for applications where safety and longevity are paramount:

• Emergency Lighting: The stability of LiFePO4 batteries makes them ideal for use in emergency lighting systems where reliable performance under various conditions is required. For example, emergency exit signs or emergency lighting fixtures.
• Solar Power Systems: LiFePO4 batteries are commonly used in solar power generation or solar energy storage systems, where long life and safety are crucial.
• Electric Vehicles: Small electric vehicles, such as e-bikes and scooters, benefit from the durability and long lifespan of LiFePO4 batteries.

Part 6. AA vs. 18650 vs. 14500 Lithium Batteries

When selecting batteries, comparing different types helps in identifying their advantages and disadvantages. Here’s a comprehensive comparison between AA, 18650, and 14500 lithium batteries:

• Size: AA and 14500 batteries are similar in size, while 18650 batteries are noticeably larger, impacting compatibility with various devices.
• Voltage: AA batteries have the lowest voltage, suitable for low-power devices. In contrast, 14500 and 18650 batteries have higher voltages, making them better suited for high-power applications.
• Capacity: 18650 batteries offer the highest capacity, meaning they last the longest per charge. 14500 batteries strike a good balance between size and capacity.
• Rechargeability: While some AA batteries are rechargeable, 14500 and 18650 batteries are almost always rechargeable, offering better cost-effectiveness in the long run.
• Energy Density: 18650 batteries have the highest energy density, followed by 14500 batteries. AA batteries have the lowest energy density.
• Applications: AA batteries are commonly found in low-power devices like remote controls and toys. On the other hand, 18650 batteries are used in high-power devices like laptops and high-intensity flashlights, while 14500 batteries are used in a variety of medium-to-high power devices.
• Safety: LiFePO4 versions of 14500 batteries offer the highest safety. In contrast, lithium-ion 18650 batteries require careful handling to prevent overheating.

Part 7. Lifespan of 14500 Lithium Batteries

The lifespan of a 14500 lithium battery depends on several factors, including the type of battery, the device it is used in, and how it is maintained. Typically, a 14500 lithium battery lasts between 300 and 500 charge cycles. This means they can undergo 300 to 500 charge cycles before their capacity significantly diminishes.

Factors Affecting Lifespan

• Usage: High-drain devices tend to deplete the battery faster, reducing its overall number of charge cycles.
• Storage: Storing batteries at high temperatures can shorten their lifespan. It’s best to store them in a cool, dry place.
• Charging: Using a charger specifically designed for 14500 batteries helps maintain optimal battery health. Overcharging or using a poor-quality charger can damage the battery.

Tips to Extend Battery Life

• Avoid Deep Discharges: Don’t let the battery completely drain before recharging.
• Use the Right Charger: Always use a charger specifically designed for 14500 lithium batteries.
• Store Properly: If the battery will not be used for an extended period, store it in a cool, dry place with approximately 50% charge.

Part 8. How to Calculate the Charging Time for a 14500 Battery

The charging time is determined by the battery’s capacity and the current provided by the charger. Use the following formula:

Charging Time = Battery Capacity / Charging Current

For example, if you have an 800mAh battery and you are charging it with a 500mA charger, the charging time can be calculated as follows:

Charging Time = 800mAh / 500mA = 1.6 hours

Part 9. Choosing a Charger

To charge 14500 batteries, use a dedicated lithium-ion charger that is specifically designed for them. Look for a charger with these features:

• Smart Charging: Automatic features that ensure safe and efficient charging.

Part 10: How to Properly Charge a 14500 Battery?

Properly charging a 14500 battery is crucial for safety and performance. Follow these steps to ensure correct charging:

1. Select the Right Charger: Ensure you choose a suitable charger specifically designed for lithium-ion batteries.
2. Insert the Battery Correctly: Make sure the positive and negative terminals are correctly matched.
3. Monitor the Battery Charging Process: Never leave the battery unattended while charging.
4. Avoid Extreme Temperatures: Avoid charging the battery in extreme temperatures. Charge in a cool, well-ventilated space.

Part 11: Recommended 14500 Battery Brands

If you’re looking for reliable 14500 batteries, here are some top brands to consider:

• Ufine: Well-known for customized lithium battery solutions and exceptional performance.
• Panasonic: Offers high-capacity batteries with excellent reliability.
• Samsung: Known for their consistent quality and durable performance.
• Efest: A favorite among flashlight enthusiasts due to its reliable quality.
• Nitecore: Offers excellent batteries with protection circuits for added safety.
• Keeppower: A brand known for its long-lasting and high-quality batteries.
• XTAR: Provides cost-effective and reliable options for everyday use.
