Correctly identifying the positive and negative terminals of a lithium battery is crucial for safe and effective use. Batteries power everything from small devices to large vehicles, and understanding how to handle them properly can prevent damage while ensuring optimal performance. This guide will walk you through all the basics about battery terminals, with a special focus on lithium batteries. Let’s get started!
Part 1: Negative Battery Terminal Overview

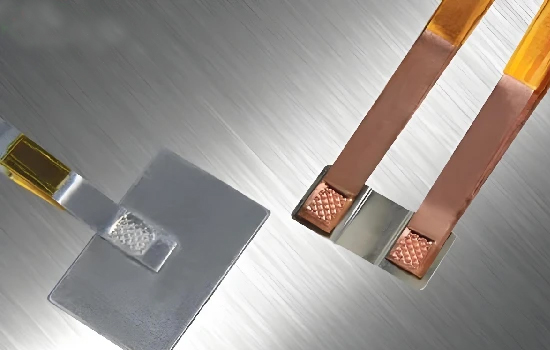

The negative battery terminal, often called the cathode, is crucial for the flow of electrical current. Electrons leave the battery from this terminal and flow into the external circuit, powering your devices. It plays a critical role in completing the circuit and ensuring your device functions correctly.
Part 2: Types of Negative Battery Terminals
Various types of negative terminals, each designed for different applications. Here are some common types:
1. Flat Terminals
- Description: Flat and often flush with the battery surface.
- Uses: Common in small batteries, like those in remote controls and cameras.
- Advantages: Space-saving.
2. Bolt Terminals
- Description: Equipped with a bolt or screw mechanism for a secure connection.
- Uses: Typically found in larger batteries, such as those in vehicles and industrial equipment.
- Advantages: Provides a stable connection and can handle higher currents.
3. Spring Terminals
- Description: Designed for quick and easy connections.
- Uses: Common in consumer electronics where batteries are frequently changed.
- Advantages: Simplifies battery replacement for devices requiring frequent changes.
Part 3: Identifying the Negative Terminal on Lithium Batteries
Identifying the negative terminal on a lithium battery is simple but crucial. Typically, the negative terminal is marked with a minus sign (-) or is black in color. This terminal is essential for ensuring your device functions correctly, and incorrect connections can lead to malfunction or damage.
- Markings: Look for a minus sign (-).
- Color: Usually black.
- Location: In some designs, the negative terminal may be slightly lower than the positive terminal.
Part 4: Positive Battery Terminal Overview
The positive battery terminal, also called the anode, is where electrical current flows *into* the battery from the external circuit. This terminal is crucial for the battery’s ability to charge and power devices. Identifying and correctly connecting the positive terminal is essential for maintaining the battery’s performance and longevity.
Part 5: Types of Positive Battery Terminals
Like negative terminals, positive terminals also have different types depending on the application.
1. Flat Terminals
- Description: Flat and often marked for easy identification.
- Uses: Found in small batteries used in electronics such as digital cameras and handheld devices.
- Advantages: Easy to connect and suitable for compact, portable devices.
2. Bolt Terminals
- Description: Secured with a bolt or screw for a strong connection.
- Uses: Common in automotive and industrial batteries.
- Advantages: Ensures a stable connection and is suitable for high-current applications.
3. Button Terminals
- Description: Small, raised buttons commonly found on button cell batteries.
- Uses: Used in small devices like watches, hearing aids, and other compact electronics.
- Advantages: Compact design and easy to connect in tight spaces.
Part 6: Identifying the Positive Terminal on Lithium Batteries
The positive terminal on a lithium battery is usually marked with a plus sign (+) or is red in color. Correctly identifying the positive terminal is essential for the safe and effective *operation* of the battery.
- Markings: Look for a plus sign (+).
- Color: Usually red.
For a deeper dive into lithium battery terminals and their significance, check out our comprehensive guide on the subject.
Part 7: Identifying the Positive and Negative Terminals of a Lithium Battery
Here is a comprehensive guide to help you identify the positive and negative terminals of a lithium battery:
Check the Markings
- Positive Terminal: Marked with a + symbol.
- Negative Terminal: Marked with a – symbol.
Color Coding
- Positive Terminal: Usually red.
- Negative Terminal: Usually black.
Shape and Position Characteristics
- Positive Terminal: Often slightly raised or a different shape than the negative terminal. In some batteries, the positive terminal may have a larger or more prominent metal contact.
- Negative Terminal: Usually recessed or designed differently to distinguish it from the positive terminal.
Use a Multimeter
If the markings are unclear, a multimeter can help confirm the polarity:
- Setting the Multimeter to DC Voltage: Ensure the multimeter is set to measure DC voltage.
- Connect the Probes: Connect the red probe to one terminal and the black probe to the other.
- Read the Display: If the multimeter shows a positive reading, the red probe is on the positive terminal, and the black probe is on the negative terminal. A negative reading indicates that the probes are reversed.
By following these methods, you can easily and accurately identify the positive and negative terminals, ensuring safe and reliable connections.
Part 8: Choosing the Right Terminal for Your Lithium Battery
Choosing the correct terminal for your lithium battery depends on your specific needs and application. Here are some things to keep in mind:
Device Requirements
- Consult the User Manual: Always consult the user manual of your device for battery specifications and terminal types.
- Match the Original Battery: If you are replacing a battery, choose one with the same terminals to ensure compatibility.
Application Type
- High-Current Applications: For devices that require high current, such as automotive or industrial equipment, bolt terminals are ideal because they provide a secure and stable connection.
- Portable Electronics: For smaller, portable devices, flat or button terminals are more practical and convenient.
Durability and Safety
- Quality Matters: Choose a high-quality battery with durable terminals to avoid issues like corrosion and poor connections.
- Safety Features: Some batteries have built-in safety features, such as short-circuit protection, which is crucial for high-risk applications.
Part 9: Connecting Terminals to a Lithium Battery
Properly connecting terminals to a lithium battery is crucial for safe operation and battery longevity. Here is a simple guide:
Steps to Connect Terminals
- Identify the Terminals: Clearly identify the positive (marked with + or red) and negative (marked with – or black) terminals.
- Prepare the Connection Area: Ensure that the battery and the device’s battery compartment are clean and dry. Dirt or moisture can lead to poor connections or corrosion.
- Connecting the Positive Terminal: Always connect the positive terminal first to reduce the risk of short circuits. Secure the connection by tightening the bolt or ensuring firm contact if using flat or button terminals.
- Connecting the Negative Terminal: After securing the positive terminal, connect the negative terminal. Again, ensure the connection is tight to prevent any loose contact.
- Check the Connections: After connecting both terminals, double-check to ensure they are properly fastened and there are no loose connections. This ensures a stable power flow and prevents accidental disconnections.
- Testing the Connection: Turn on your device to verify that the battery is correctly connected and functioning as expected. If the device does not power on, recheck the connections to ensure they are properly placed and secured.
Safety Tips
- Avoiding Metal Tools: When working with batteries, avoid using metal tools, which can cause short circuits if they come into contact with the terminals.
Proper Handling and Connection Methods for Lithium Batteries
When handling lithium batteries, ensuring proper handling and terminal connection is crucial for safety and performance. Here are some fundamental guidelines to follow:
1. Avoid Touching Both Battery Terminals Simultaneously
Never directly touch both terminals of a battery at the same time. Doing so can lead to short circuits, sparks, or potential damage to the device or battery. Always handle the terminals with care to ensure safe operation.
2. Wear Protective Gear
To protect yourself from potential hazards, such as the risk of acid leakage or accidental sparks, always wear appropriate protective gear, including gloves and safety glasses. Wearing protective gear minimizes the risk of injury and ensures safer battery handling.
3. Disconnect When Not in Use
If a device or battery will not be used for an extended period, it is essential to disconnect the battery. Disconnecting helps prevent leaks, excessive discharge, or damage and prolongs the overall lifespan of the battery.
Conclusion
Understanding how to identify and properly connect the positive and negative terminals of lithium batteries is crucial. This is important for maintaining the safety and optimal functionality of devices. Familiarizing yourself with different terminal types and connection procedures ensures that your batteries operate optimally and have an extended lifespan. Always follow the manufacturer’s safety handling guidelines to maximize the longevity of your devices.
