CALB 169Ah NMC Prismatic Cell

Brand New CALB 169Ah NMC Lithium-Ion Battery Cell (3.7V, Square)

High-Quality Grade A NMC Battery Cell
100% Inspected and Safely Packaged, 3-Year Warranty

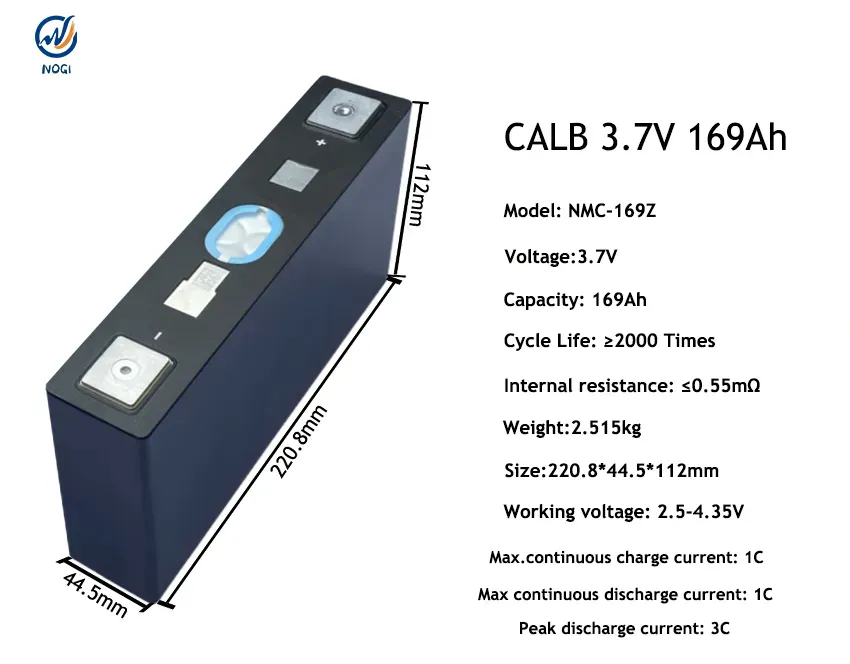

Battery Model:

• Model: NMC-169Z
• Type: Square NMC Rechargeable Battery
• Nominal Voltage: 3.7 V
• Nominal Capacity: 169 Ah

Battery Specifications:

• Charging Voltage Range: 2.2 V – 4.35 V
• Discharge Cut-off Voltage: 2.2 V
• Maximum Charging Current: 1C
• Maximum Discharging Current: 500 A
• Internal Resistance: ≤0.55 mΩ
• Charging Temperature: -20°C to 55°C
• Discharging Temperature: -30°C to 55°C
• Storage Temperature: -20°C to 55°C
• Cycle Life: ≥2000 cycles at 80% Depth of Discharge (DOD)

Physical Specifications:

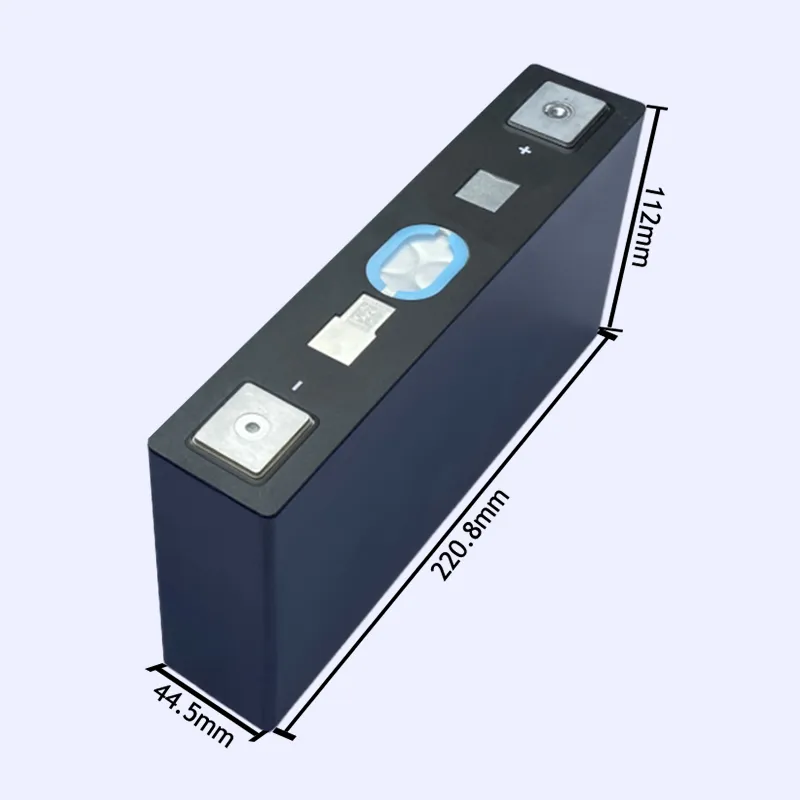

• Battery Dimensions: 220.8 x 112 x 44.5 mm
• Battery Weight: 2.515 kg
• Warranty: 3 Years

FAQ

1) Can I order battery samples?
Yes, sample orders and mixed model samples are welcome.

2) Do you sell used batteries?
No, we only provide brand new batteries.

3) Does the battery include busbars and bolts?
Yes, the battery comes with busbars and bolts.

4) Do you test each battery prior to shipping?
Yes, of course. We test the voltage and internal resistance of each battery before shipment.

5) What is the lead time for an order?
We maintain stock for fast delivery, typically requiring 2-7 days to prepare the batteries for shipment.

6) How to place an order?
Just contact us with your requirements, and we’ll provide a detailed quote for you to review. We also offer DDP (Door-to-Door) shipping if needed, and orders can be processed through Alibaba Trade Assurance.

Yes, the battery is equipped with busbars and bolts. We can also provide laser-welded studs or weld nut posts according to your specifications. Typically, each battery includes 1 busbar and 2 bolts.
